TIP 47 | WHEN IS A 2-WIRE HOSE MORE THAN A 2-WIRE HOSE?

When Is a 2-Wire Hose More Than a 2-Wire Hose?

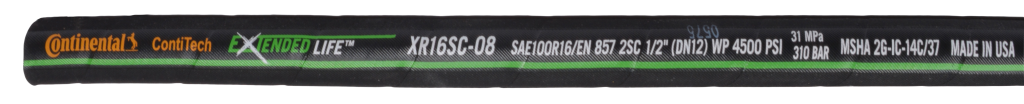

When it is Continental’s XR16SC Hose.

• Working pressure is 5000 psi and higher on -04, -06, and -08 hoses.
• Meeting or exceeding SAE specs for 100R16 through -20.
• -24 and -32 analogs (no SAE specification exists) on test and completed testing, respectively.
• -32 working pressure of 1600 psi.
• Half the bend radius of 100R2SN hose.
• Smaller profile for easier routing and lower weight.
• Extended-Life, XR cover provides up to 5xthe abrasion resistance of our standard cover SR2SN hose.
• It is more economical –not just in performance, but in actual price, compared to our SR2SN hose.
• All hoses use Continental’s B2-family of 1-pc, no-skive, Ultra-Crimp fittings.

XR16SC now makes up 70% of 100R16 and 100R2SN sales. Get on the bandwagon, in stock today and everyday along with the fittings you need!
